Tiltrotator for 8-14 ton excavator

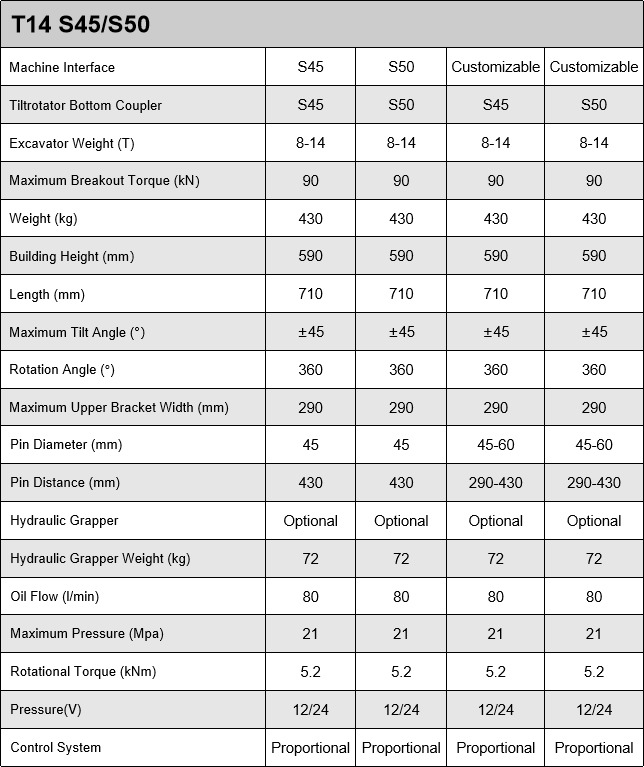

Machine Interface：S45 / S50 / Customizable / Customizable
Tiltrotator Bottom Coupler：S45 / S50 / S45 / S50
Excavator Weight (T)：8-14 / 8-14 / 8-14 / 8-14
Maximum Breakout Torque (kN)：90 / 90 / 90 / 90
Weight (kg)：430 / 430 / 430 / 430
Building Height (mm)：590 / 590 / 590 / 590
Length (mm)：710 / 710 / 710 / 710
Maximum Tilt Angle (°)：±45 / ±45 / ±45 / ±45
Rotation Angle (°)：360 / 360 / 360 / 360
Maximum Upper Bracket Width (mm)：290 / 290 / 290 / 290
Pin Diameter (mm)：45 / 45 / 45-60 / 45-60
Pin Distance (mm)：430 / 430 / 290-430 / 290-430
Hydraulic Grapper：Optional / Optional / Optional / Optional
Hydraulic Grapper Weight (kg)：72 / 72 / 72 / 72
Oil Flow (l/min)：80 / 80 / 80 / 80
Maximum Pressure (Mpa)：21 / 21 / 21 / 21
Rotational Torque (kNm)：5.2 / 5.2 / 5.2 / 5.2
Pressure(V)：12/24 / 12/24 / 12/24 / 12/24
Control System：Proportional / Proportional / Proportional / Proportional
Features
• ±45° tilt and 360° rotation for precise positioning
• Low-profile design for stability
• Optimized for mid-size excavators
• Single grease point service
• Robust design for utility work

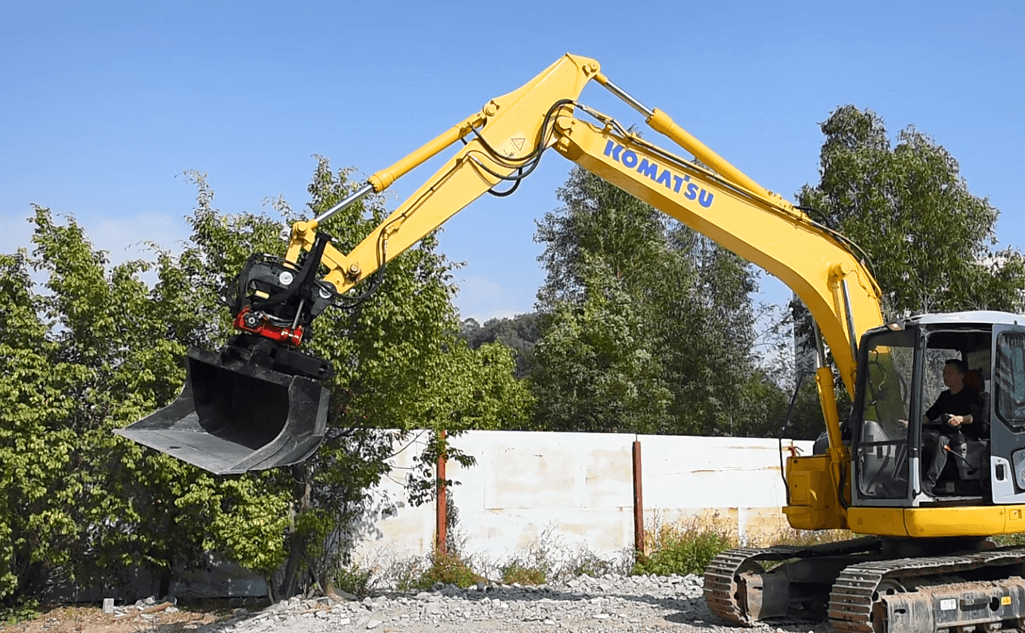

The T14 is a tiltrotator for 8-14 ton excavator, equipped with a proportional control system designed for mid-size excavator applications. Operators can control tilt, rotation simultaneously with smooth and predictable response, ensuring high accuracy in demanding utility and construction tasks.

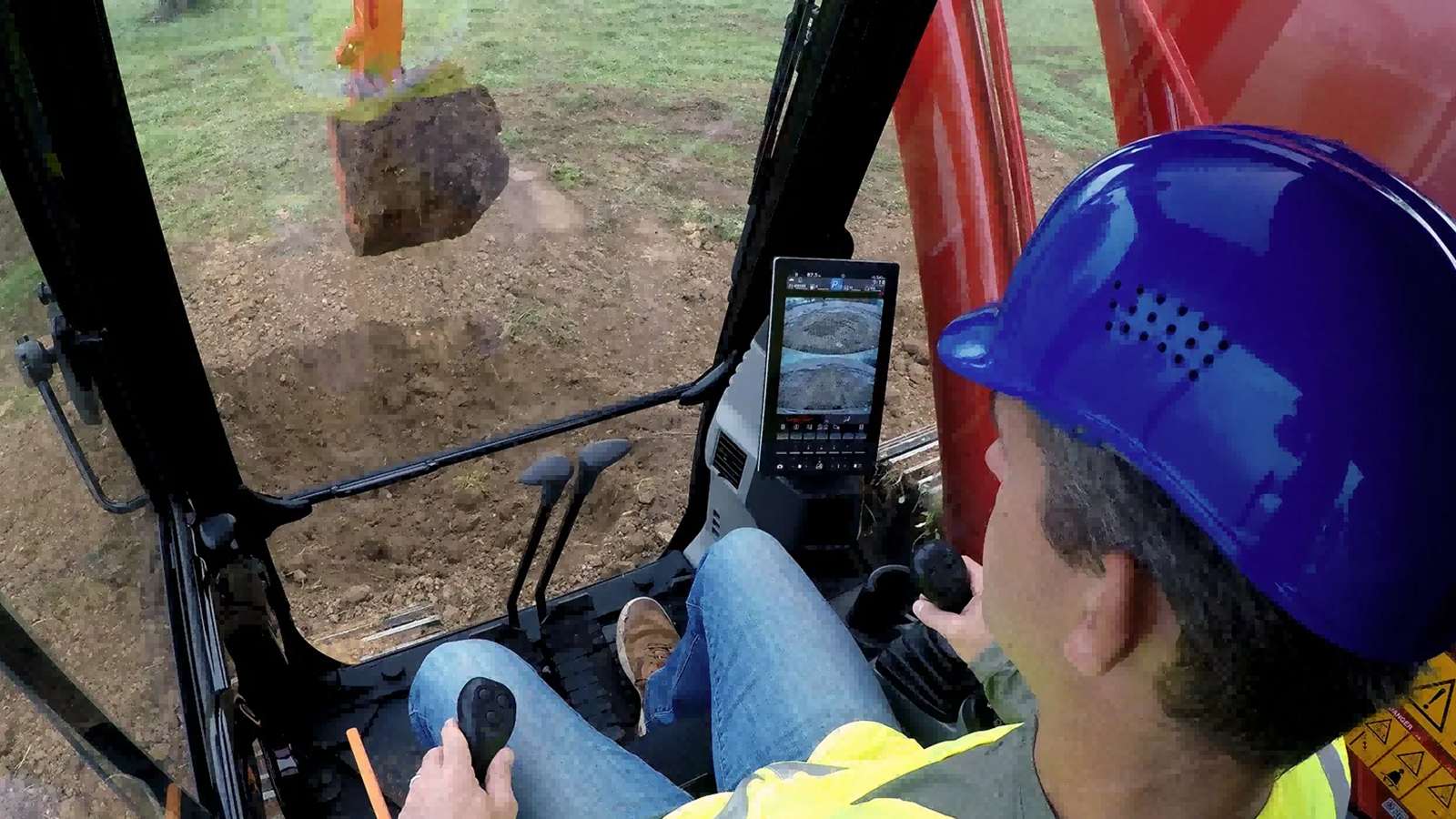

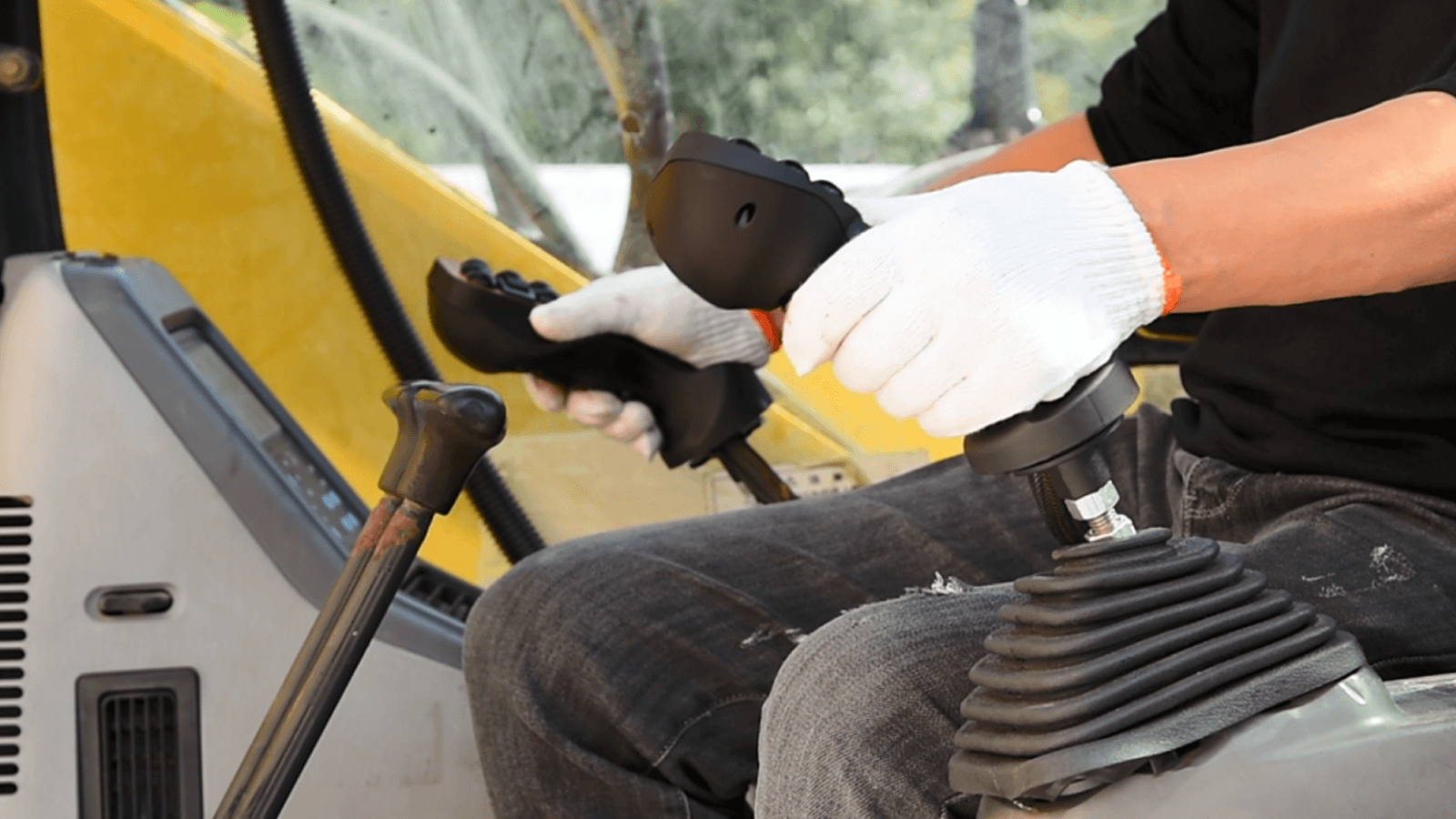

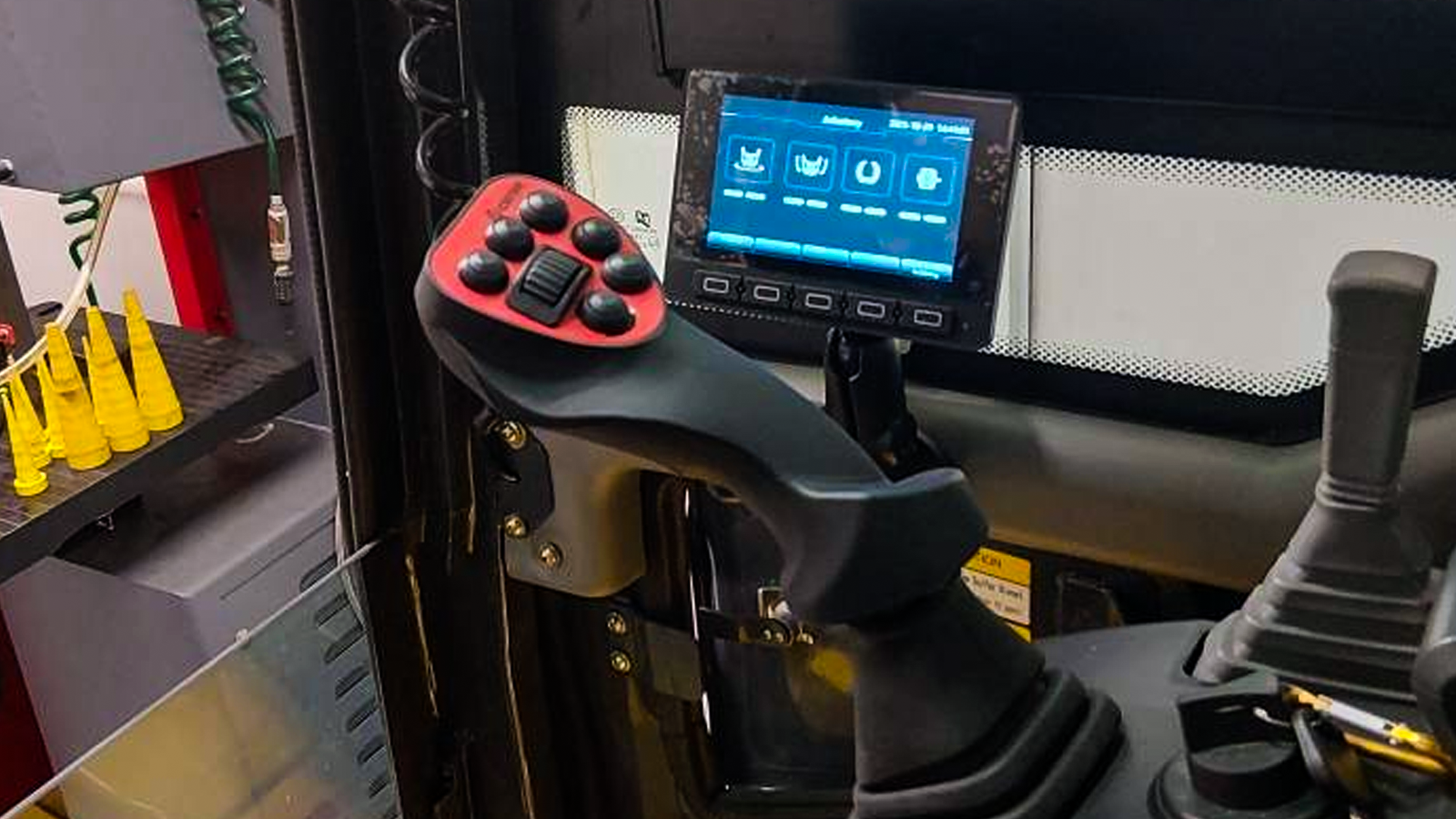

The intuitive control interface and integrated safety functions provide reliable performance and confident operation under various working conditions.
Smooth Operation

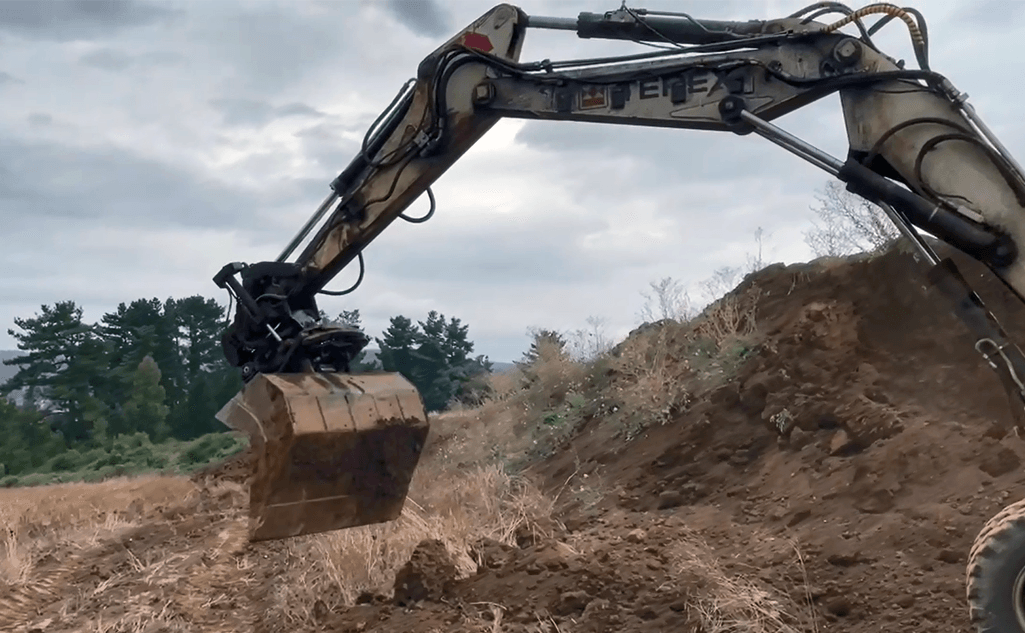

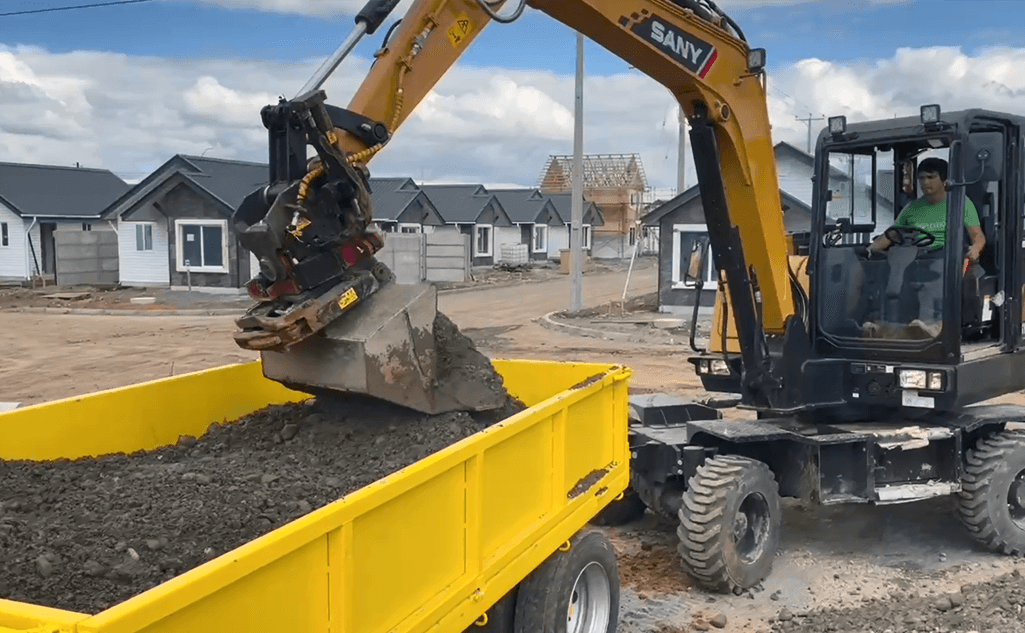

Designed specifically for mid-size excavators, the T14 delivers smooth, balanced, and stable operation throughout the full working range. Optimized hydraulic flow and refined control calibration allow precise movements during grading, trenching, and material handling.
This smooth operation reduces operator fatigue while improving efficiency and overall work quality, especially in repetitive utility applications.

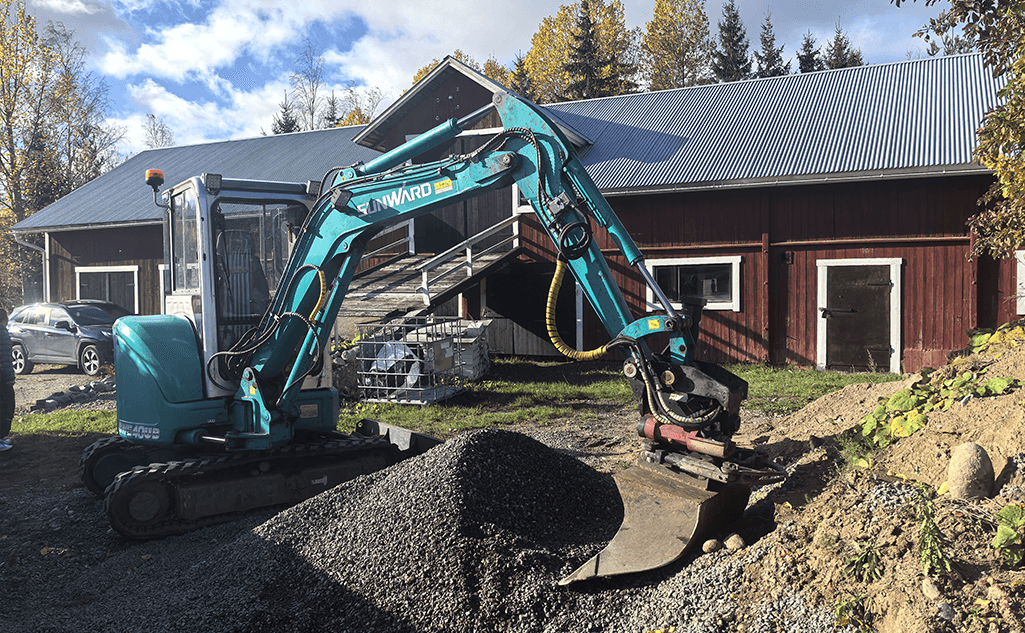

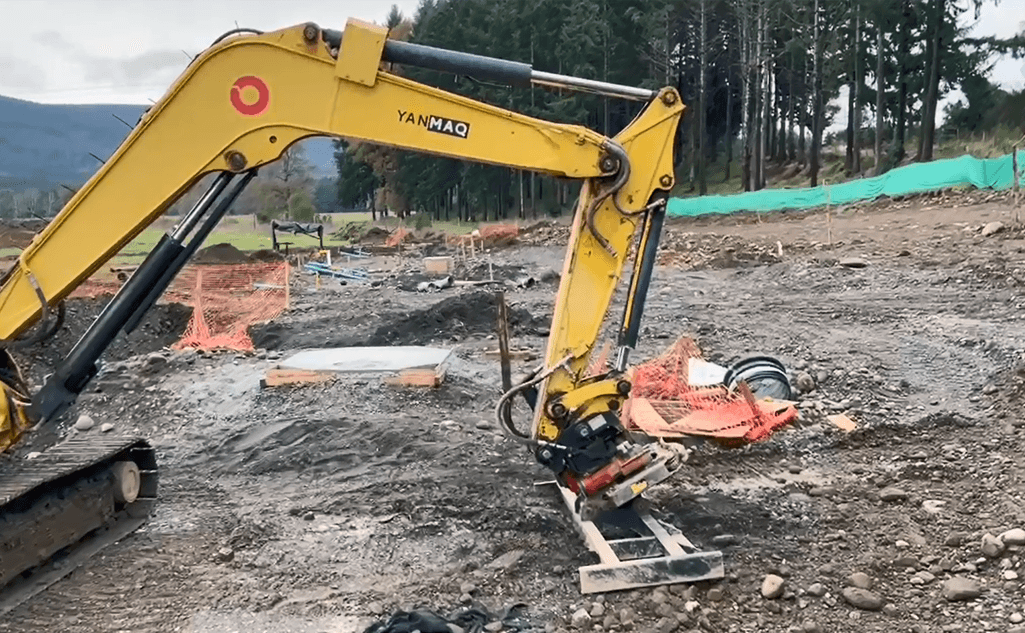

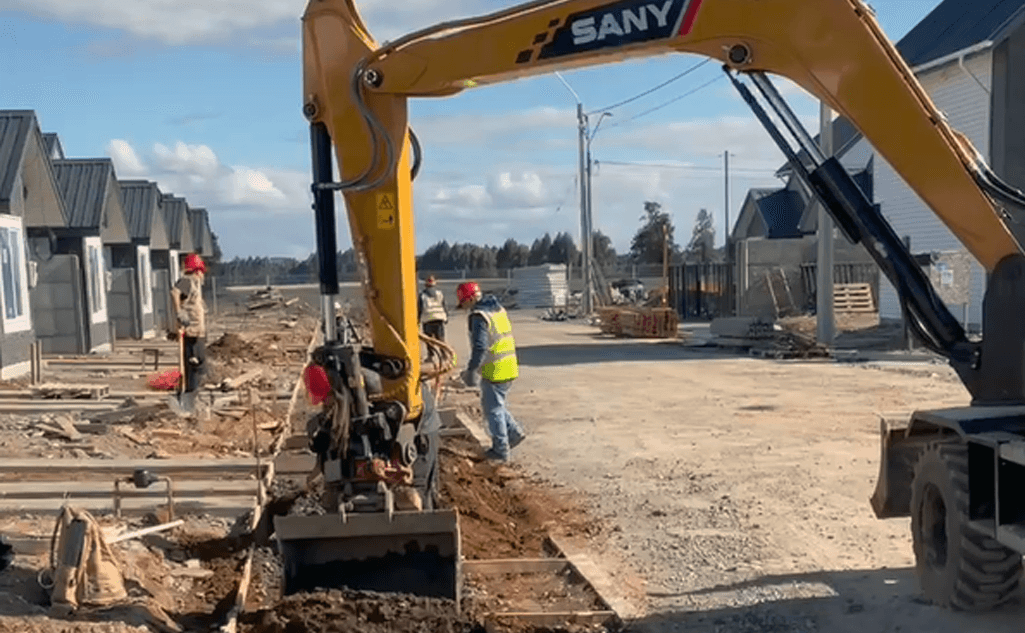

The T14 is an ideal tiltrotator for 8–14 ton excavator, widely used in utility, landscaping, trenching, and general construction work. It is well suited for mid-size excavator operating in urban infrastructure projects, roadworks, and service installations.
With its balanced design and reliable performance, the T14 performs efficiently in both confined job sites and open working environments, making it a versatile solution for everyday utility-focused operations.
