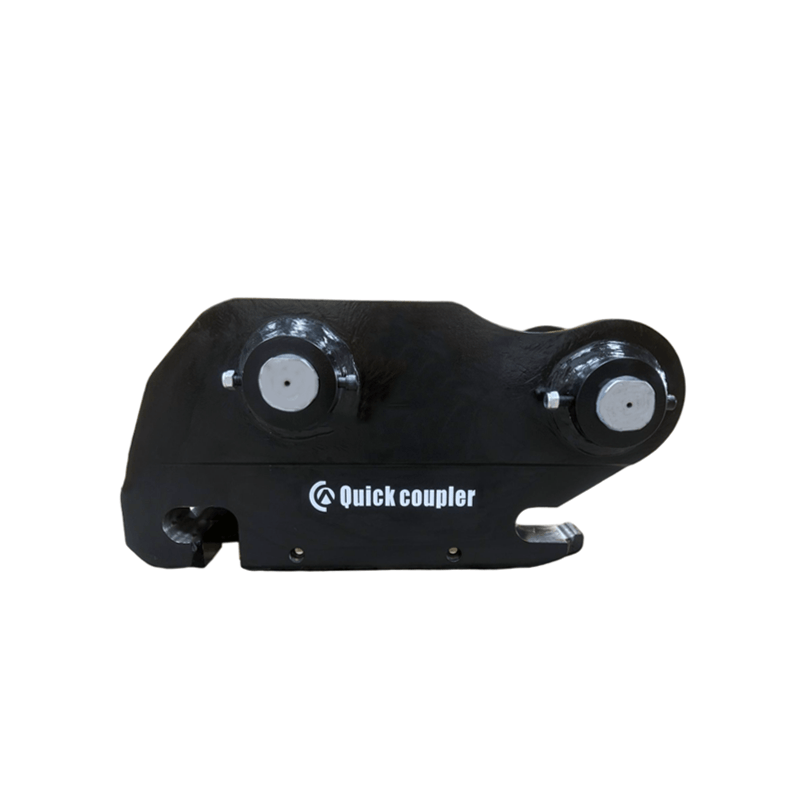

Quick Hitch
QP01
excavator Tiltrotator
Quantity
| CATSU Quick Hitch/couple |
| Quick Hitch | CQ02 | CG04 | CG12 | CG16 | CG22 | CG32 | CG40 | CG40 |
| Excavator (Ton) | 1.5-4T | 4-7T | 5-8T | 9-19T | 17-23T | 23-26T | 23-30T | 33-40T |
| Max opening (mm) | 1000 | 1300 | 1400 | 1800 | 2300 | 2500 | 2500 | 2500 |
| Pressure (Bar) | 110-140 | 110-140 | 120-160 | 150-170 | 160-180 | 160-180 | 180-200 | 180-200 |
| Flow （lpm) | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 | 10-20 |
| Pin Diameter(mm) | 20-45 | 40-45 | 45-55 | 50-70 | 70-90 | 90 | 90-100 | 100-110 |
| Weight (kg) | 30-40 | 50-75 | 80-110 | 170-210 | 350-390 | 370-410 | 410-520 | 550-750 |
