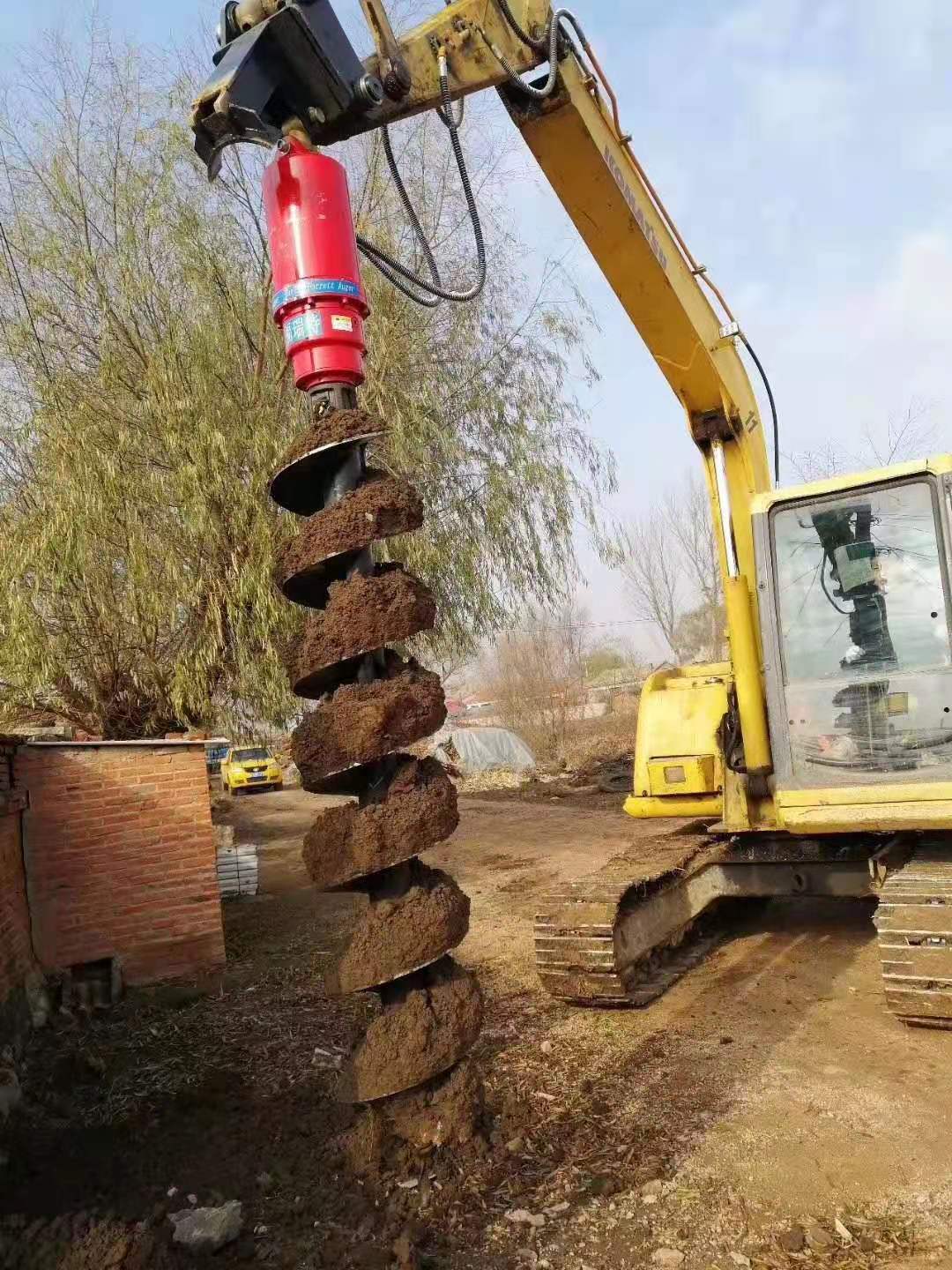

CATSU EARTH DRILLING AUGER
| Auger | TA12 | TA15 | TA20 | TA25 | TA30 | TA35 | TA45 | TA55 | TA60 | TA70 | TA80 | TA100 | TA120 | TA150 | TA200 | TA250 | TA300 | TA350 | TA450 | TA500 | TA650 |
| Excavator (Ton) | 1T-2T | 1T-2T | 1T-2.5T | 1.5T-3T | 2T-4.5T | 2.5T-4.5T | 3T-5T | 4.5T-7T | 4.5T-6T | 5T-7T | 6T-8T | 7T-9T | 7T-9T | 8T-10T | 13T-20T | 15T-22T | 20T-30T | 20T-30T | 20T-45T | 21T-45T | 21T-45T |
| Torque (Nm) | 511-1496 | 511-1496 | 639-2190 | 830-2847 | 959-2877 | 1205-3614 | 1500-4499 | 1685-5477 | 1685-6057 | 2133-6931 | 2717-8152 | 3281-10662 | 3281-12662 | 5024-15071 | 13043-19564 | 16503-24755 | 20510-35323 | 20510-35323 | 23561-45624 | 23758-47515 | 33295-66589 |
| Pressure(Bar) | 70-205 | 70-205 | 70-240 | 70-240 | 80-240 | 80-240 | 80-240 | 80-260 | 80-260 | 80-260 | 80-240 | 80-260 | 80-260 | 80-240 | 160-240 | 160-240 | 180-310 | 180-310 | 180-310 | 160-320 | 160-320 |
| Flow(lpm) | 20-45 | 20-45 | 25-57 | 27-65 | 27-75 | 40-85 | 50-95 | 40-115 | 40-115 | 60-135 | 70-150 | 70-150 | 70-150 | 70-150 | 80-170 | 80-170 | 80-225 | 80-225 | 80-225 | 100-280 | 100-280 |
| Speed(rpm) | 44-98 | 44-98 | 43-99 | 36-87 | 36-100 | 42-90 | 42-81 | 30-87 | 30-87 | 36-81 | 30-70 | 27-58 | 27-58 | 18-38 | 16-33 | 12-26 | 11-31 | 11-31 | 20-45 | 11-31 | 8-21 |
| Height(mm) | 585 | 585 | 585 | 585 | 665 | 665 | 665 | 780 | 780 | 780 | 780 | 883 | 1040 | 1060 | 1130 | 1130 | 1150 | 1411 | 1411 | 1411 | 1556 |
| Diameter(mm) | 200 | 200 | 200 | 200 | 244 | 244 | 244 | 269 | 269 | 269 | 269 | 290 | 330 | 350 | 360 | 370 | 370 | 406 | 442 | 406 | 406 |
| pipe | 1/2" | 1/2" | 1/2" | 1/2" | 1/2" | 1/2" | 1/2" | 3/4" | 3/4" | 1" | 1" | 1" | 1" | 1" | 1" | 1" | 1" | 1" | 1" | 1" | 1" |
| Weight(kg) | 44 | 44 | 47 | 48 | 71 | 73 | 75 | 108 | 130 | 112 | 180 | 183 | 230 | 270 | 280 | 290 | 300 | 442 | 442 | 470 | 480 |
| Drilling Diameter(mm) | 100-300 | 100-400 | 100-450 | 100-500 | 100-600 | 100-750 | 100-900 | 150-750 | 150-750 | 150-900 | 150-1200 | 150-900 | 150-900 | 150-1200 | 150-1200 | 150-1500 | 150-1500 | 300-1500 | 300-1800 | 300-2400 | 300-2400 |
