Excavator Tilt Bucket or Bucket Tilter: Which Improves Grading Efficiency?
An excavator may have enough digging power for a project but still lose time because the bucket cannot reach the required angle. When grading slopes, cleaning ditches, working beside kerbs, or preparing uneven ground, the operator often needs more movement at the end of the excavator arm.
An excavator tilt bucket and a bucket tilter can both provide additional side-to-side movement. However, they do not always offer the same functions or the same level of flexibility.
Understanding the difference can help contractors select a more efficient attachment system.
Why Bucket Angle Affects Productivity
A fixed bucket follows the direction of the excavator boom and arm. If the cutting edge does not match the required slope, the operator may need to move the tracks, rotate the upper structure, or approach the work from another position.
Each adjustment interrupts the working cycle.
On an open construction site, repositioning may only take a short time. In a restricted area, it can be much more difficult. Buildings, roads, pipes, trees, fences, and completed surfaces can limit where the machine is allowed to move.
Additional bucket movement allows the operator to make more adjustments from the cab while keeping the excavator in a suitable working position.
How an Excavator Tilt Bucket Works
An excavator tilt bucket normally has a hydraulic tilting mechanism built into the bucket. It allows the cutting edge to move laterally and follow the angle of the working surface.
This makes it useful for:
- Slope grading
- Ditch cleaning
- Drainage construction
- Landscaping
- Roadside maintenance
- Surface finishing
Because the hydraulic mechanism is integrated into the attachment, the additional movement belongs to that individual bucket.
When the operator changes from the tilt bucket to a standard digging bucket, grapple, compactor, or another work tool, the tilting function is no longer available.
For machines mainly used for grading, this may still be a practical solution. For contractors who frequently change attachments, it can limit overall machine flexibility.

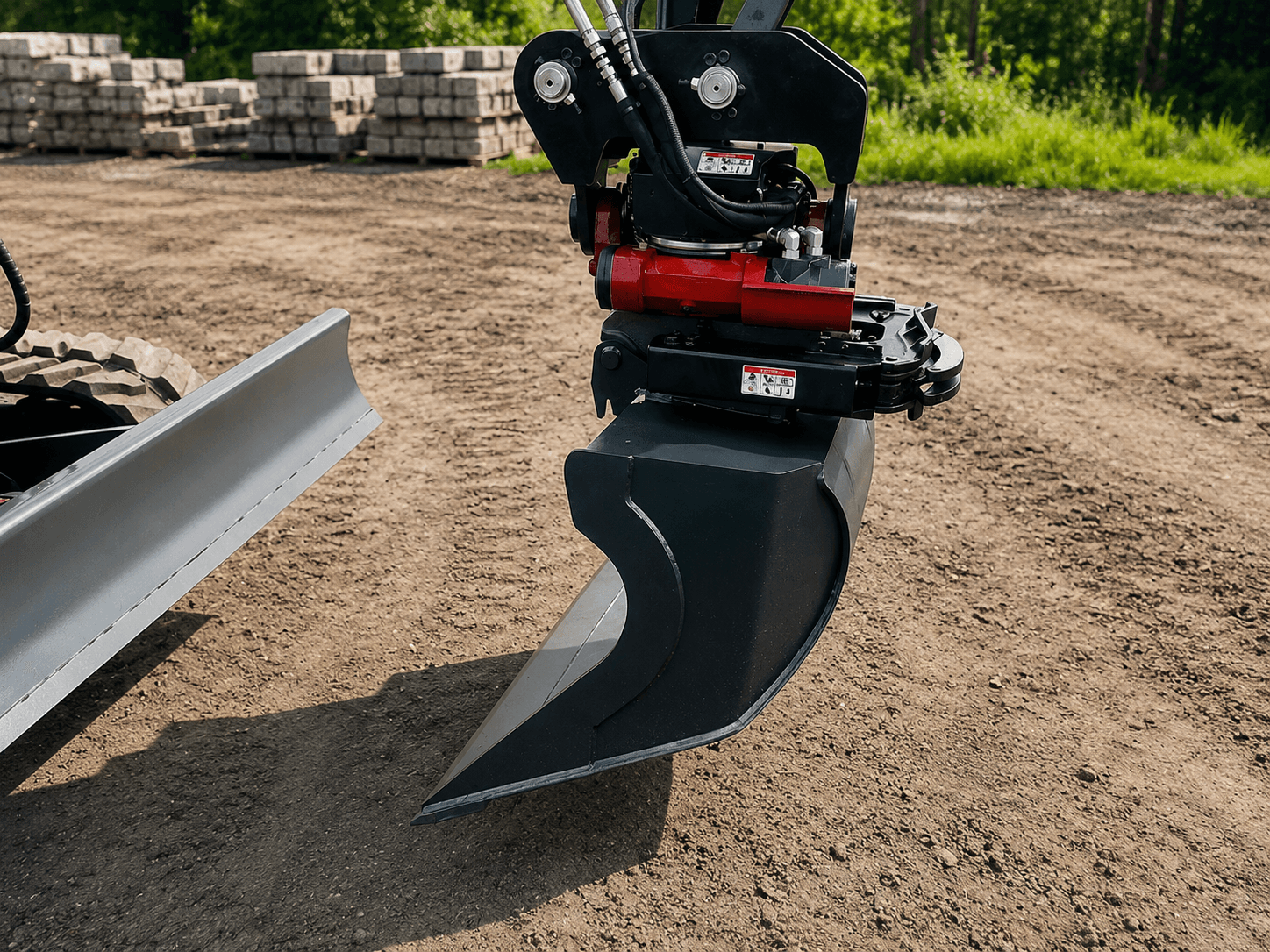

What Is a Bucket Tilter?
The term bucket tilter is used differently by various manufacturers and markets. It usually refers to a hydraulic device installed between the excavator arm and the bucket.
Unlike a bucket with an integrated tilting mechanism, the device can allow compatible attachments installed below it to use the same lateral movement.
This arrangement can provide more flexibility than one dedicated tilt bucket. However, a basic bucket tilter usually provides side-to-side tilt without continuous rotation.
The operator can adjust the cutting angle, but the general working direction still depends on the position of the boom, arm, and upper structure.

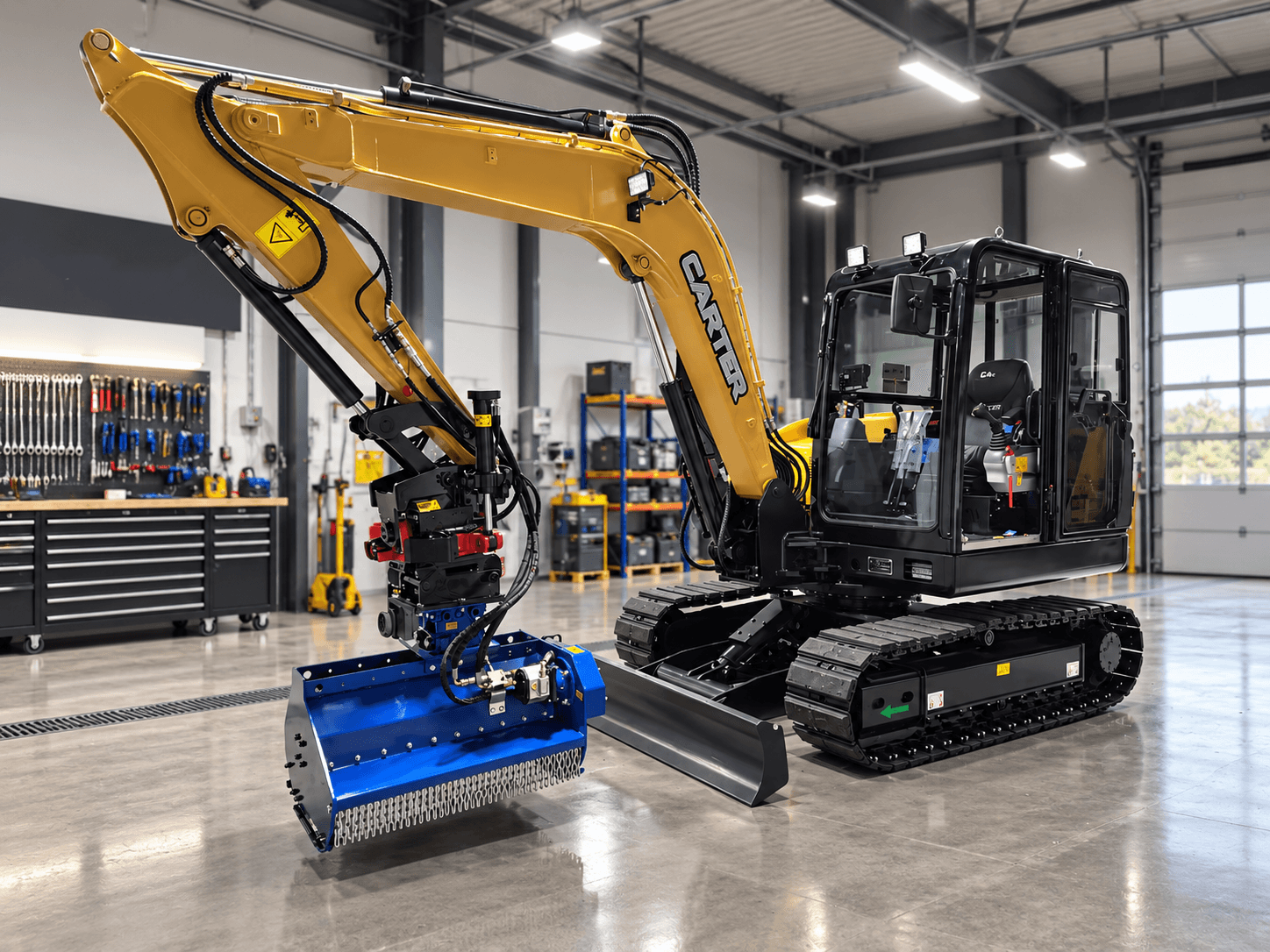

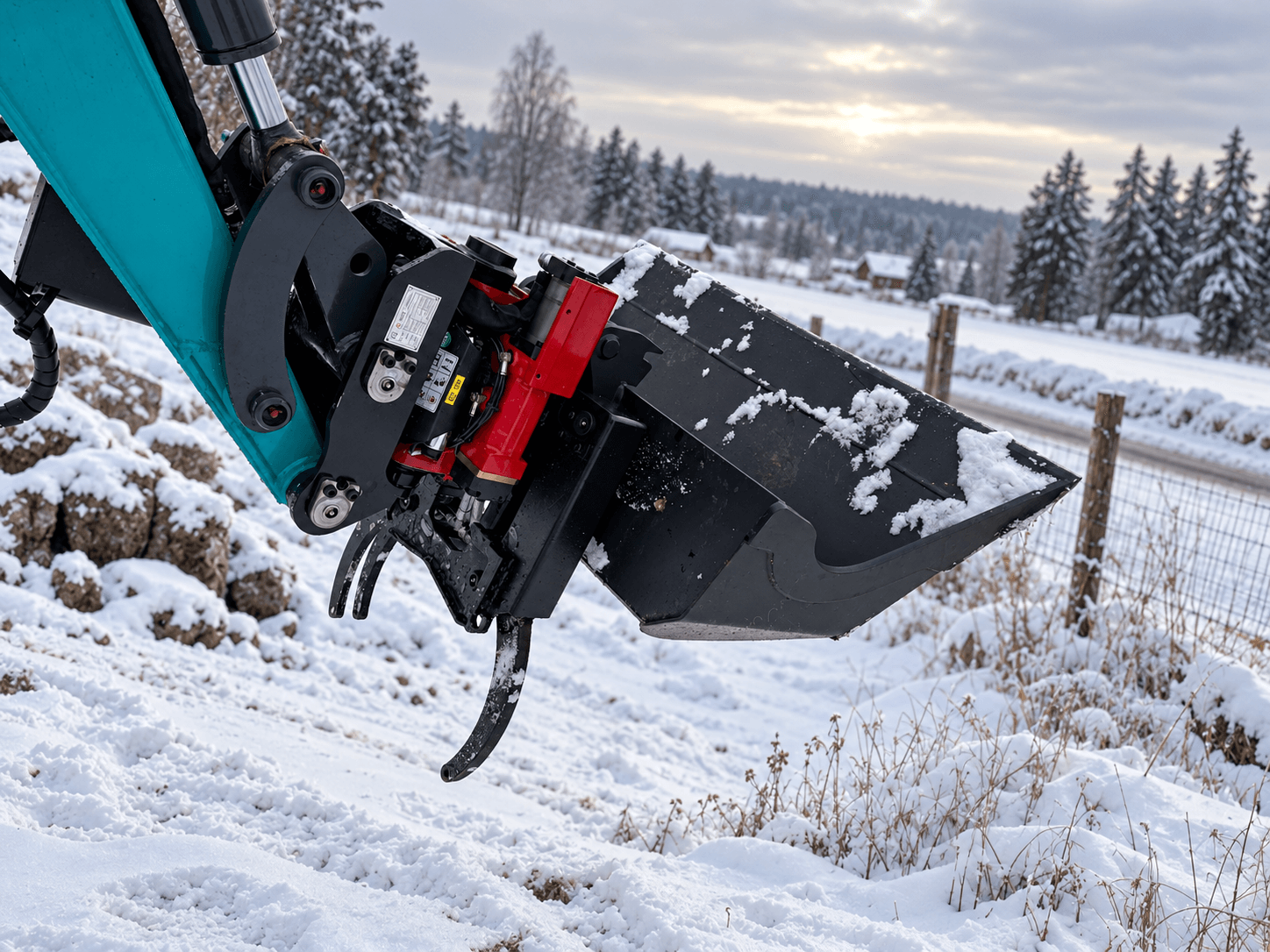

Adding Rotation with a Tiltrotator
A tiltrotator extends the same concept by combining bidirectional tilt with continuous 360-degree rotation.
Instead of only changing the lateral angle, the operator can also turn the attachment to face another direction. This can reduce the need to reposition the excavator when working along walls, around pipes, across trenches, or in confined spaces.
The movement remains at the attachment interface. Compatible digging buckets, grading buckets, grapples, and other work tools can therefore use the same tilt-and-rotation functions.
This can make the excavator more efficient across several stages of a project rather than improving only one bucket application.
Reducing Repeated Grading Passes
An accurate first pass is often more valuable than a fast but incorrect pass.
When the bucket angle does not match the target surface, the operator may remove too much material from one area and leave too much in another. Additional passes are then required to correct the result.
A tilt bucket allows the cutting edge to follow slopes and uneven ground more closely. A tiltrotator adds directional control, allowing the bucket to approach the same surface from different angles.
Proportional control can also help the operator make smaller adjustments when working beside kerbs, foundations, pipes, or completed surfaces.
The actual efficiency improvement depends on the machine, operator, attachment, material, and working conditions. However, reducing unnecessary repositioning and repeated corrections can create a more continuous workflow.
Selecting the Right Solution
A dedicated excavator tilt bucket may be suitable when one machine mainly performs grading and ditch-cleaning work.
A bucket tilter can offer greater flexibility when several compatible buckets require lateral movement.
A tiltrotator is more suitable when the excavator needs both tilt and continuous rotation across multiple work tools.
The correct system must be selected according to excavator weight, mounting dimensions, hydraulic pressure, oil flow, coupler standard, attachment weight, and intended applications.
CATSU manufactures tiltrotators for excavators from 1 to 26 tonnes. The product range provides 360-degree continuous rotation, bidirectional tilt, proportional control, and compatible attachment interfaces.
Contact CATSU with your excavator model, coupler dimensions, hydraulic information, and work-tool requirements to confirm the appropriate configuration.
