Hydraulic Tilt Ditching Bucket vs. Tiltrotator: Which Improves Excavator Efficiency?
Hydraulic Tilt Ditching Bucket vs. Tiltrotator: Which Improves Excavator Efficiency?
A hydraulic tilt ditching bucket is commonly used for grading, slope finishing, ditch cleaning, and surface preparation. Its hydraulic mechanism allows the bucket to tilt sideways without requiring the excavator to be repositioned for every change in cutting angle.
This can make a tilting bucket an efficient choice for machines that mainly perform grading and ditch-maintenance work.
A tiltrotator provides a different type of solution. Instead of placing the movement inside one bucket, it installs continuous rotation and bidirectional tilt between the excavator arm and compatible work tools.
Understanding this difference can help contractors select the most efficient attachment system for their actual workload.
How a Tilting Bucket Improves Grading Work
A conventional fixed bucket follows the position of the excavator boom, arm, and undercarriage. When forming a slope or cleaning an angled ditch, the operator may need to reposition the machine several times to keep the cutting edge aligned with the required surface.
A tilting bucket allows the cutting edge to move laterally. This helps the operator follow slopes, shape drainage profiles, and finish uneven ground while keeping the excavator in a stable working position.
For machines dedicated mainly to grading, a hydraulic tilt ditching bucket can provide a simple and practical efficiency improvement. Its movement is focused on the bucket and the specific tasks for which the bucket was designed.
The limitation is that the tilting function remains with that individual attachment. When the bucket is removed, other work tools do not automatically gain the same movement.
How a Tiltrotator Changes the Workflow

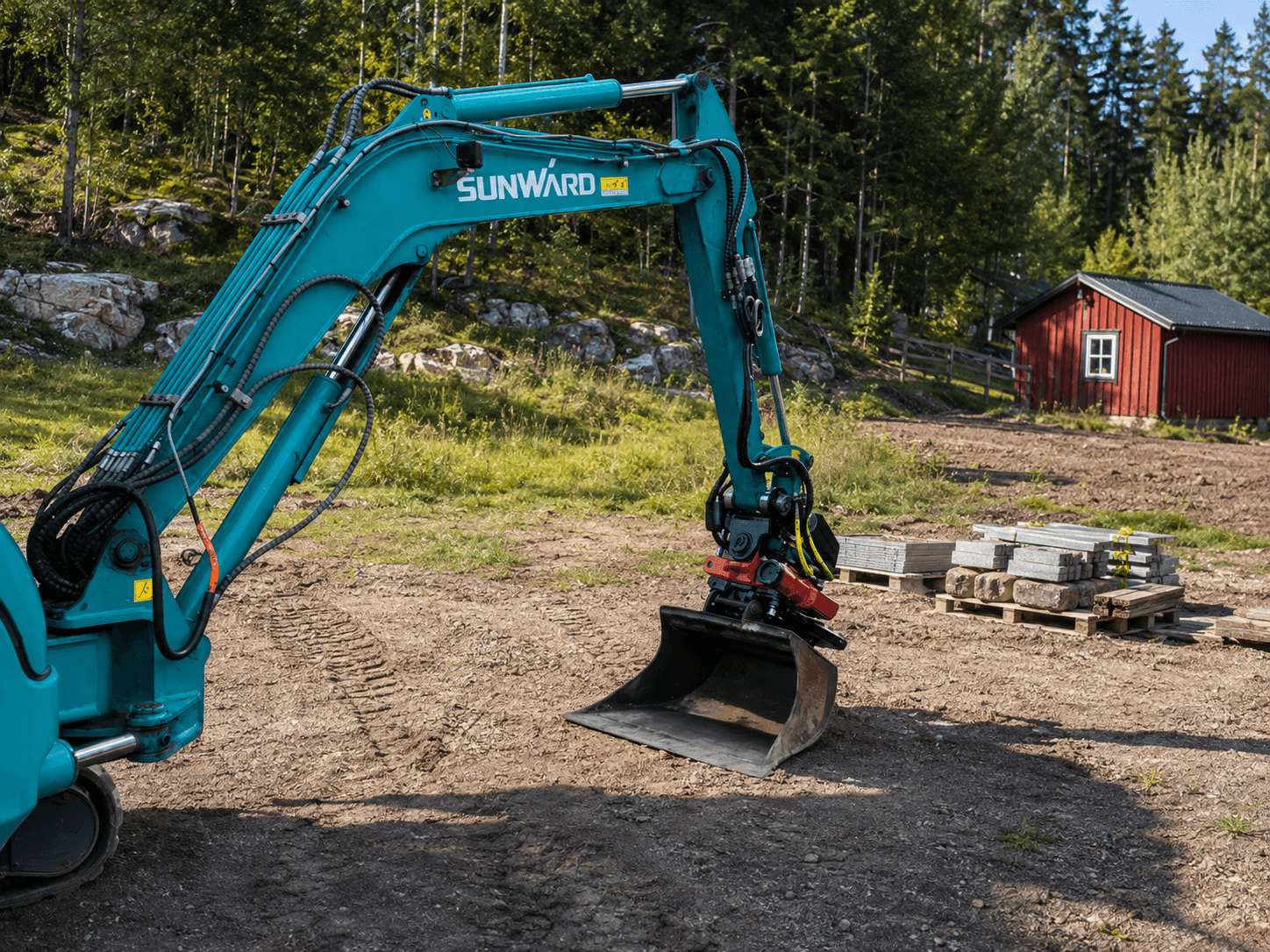

A tiltrotator places the movement above the lower attachment connection. It provides continuous 360-degree rotation together with bidirectional tilt, allowing compatible tools to be positioned at different angles.
This changes how the excavator approaches grading and ditching work.
The operator can turn the bucket to work along a trench, adjust the lateral angle for a slope, or position the cutting edge beside a kerb without relying entirely on movement of the excavator tracks.
Fewer repositioning movements can help maintain a more continuous workflow. This is particularly useful in confined areas where space for turning or travelling is limited.
Improving Accuracy and Reducing Repeated Passes
Efficiency is not only about completing one movement faster. It is also about achieving the required surface with fewer corrections.
An excavator tilting bucket allows the operator to adjust the bucket angle during grading. A tiltrotator adds rotation, allowing the operator to control both the angle and direction of the bucket.
This can help when:
- Forming drainage channels with changing directions
- Grading around pipes, chambers, walls, and kerbs
- Finishing slopes from different machine positions
- Spreading material in restricted areas
- Backfilling around installed services
- Working beside completed structures
Better attachment positioning can reduce unnecessary passes and help the operator place or remove material more accurately. However, the excavator must still be positioned correctly, and the work must remain within the machine’s approved operating limits.
One Bucket or Multiple Work Tools?
The right choice depends on how the excavator is used.
A hydraulic tilt ditching bucket may be suitable when the machine mainly performs grading and ditch-cleaning work with the same attachment. It provides lateral movement without adding the full functions of a tiltrotator.
A tiltrotator becomes more valuable when the excavator regularly changes between digging buckets, grading buckets, grapples, compactors, and other compatible tools.
Because the movement remains at the attachment interface, several tools can use the same rotation and tilting capability. This can make the excavator more adaptable across different stages of a project.
Selecting an Efficient Attachment System
Neither solution should be selected only by comparing product features. Excavator weight, hydraulic capacity, coupler dimensions, attachment weight, working height, stability, and intended applications must all be considered.
An incorrectly matched system can affect digging geometry, lifting capacity, hose routing, and machine handling.
CATSU supplies tiltrotator systems for excavators from 1 to 26 tonnes. Each configuration is prepared according to the carrier machine, coupler standard, hydraulic system, and intended attachments.
For contractors comparing a tilting bucket with a complete tiltrotator, CATSU can review the application and recommend a suitable configuration based on the work the excavator needs to perform.
